Description

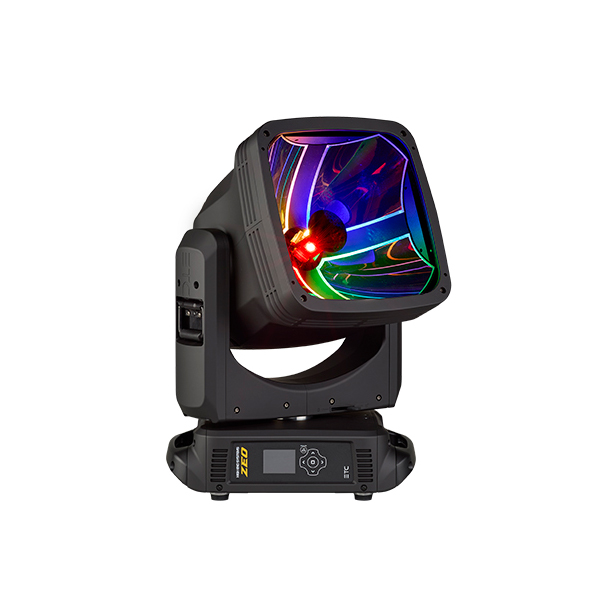

Bring a totally unique look to your show with the High End Systems Zeo, while having all the versatility to make it your own. This RGBW effects fixture captivates a crowd whether used for beams and washes or as a strobe or blinder. The Zeo’s distinctive design comes from its center LED monolith surrounded by four defined reflectors, which can shine brightly as a wash or be separated into beams.

Product Features
• LED monolith with four 300 W RGBW LED cells
• Individual cell control
• Fixture output exceeding 30,000 lumens
• Patented Quad Reflector system
• HaloGraphic Pixel Definition technology
• Motorized Light Concentration system
• Optional accessory beam homogenizer for enhanced color
mixing
• Strobe and inclusive macros with separate background levels
to enhance shows at all programming levels

Source
Engine Quantity four, each 300 W RGBW COB
LED Details 1,200 W
Max Integrating Sphere Lumens 30,000 lumens
LPW 25
LED Life 50,000 hours

Color

Color Mixing Red, Green, Blue, White, CTO
Color Temperature 2,200 K to 10,000 K

Optical
Light Concentration Control Motorized, beam from 13° to 55°
Aperture Size 285 x 285 mm
Diffusion Optional beam homogenizer accessory
Flicker Control/Hz Range 2.4 kHz and 16 kHz

Control
Input Method DMX (5-pin) or Ethernet
Protocols DMX via RS-485
Art-Net or sACN via Ethernet
Ethernet Pass-Thru Passive Ethernet in and thru with and without
power
Data Conversion Patented data conversion system for Ethernet
to DMX
Modes (Footprint)
Standard (51 channels)
Reduced (23 channels)
Wash (15 channels)

Effects Capabilities
Inclusive macros
Strobe macros
Individual cell mapping
RDM Functions Yes
UI Type Full-color graphical UI and 5-button
navigational control
Local Control Yes
Dimming Performance 16-bit, DMX controlled

Electrical
Voltage Range 100–240 V 50–60 Hz
Wattage 1,670 W

Thermal
Ambient Operating Temp -10°C to 40°C (14°F to 104°F)
Cooling System Fan-cooled closed-loop liquid cooling system
Fan Mode Standard, Studio, and Linear Continuous
control channel

Physical
Pan and Tilt Range 540° pan, 205° tilt
Max Pan/Tilt Speed 360° in 2.39 s/180° in 1.92 s
IP20
Weight 44 lb
